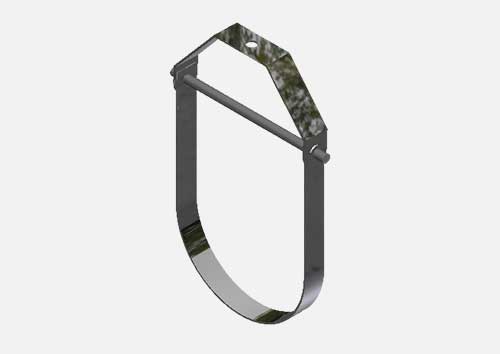

A Clevis Hanger is a type of pipe support used in mechanical, plumbing, and industrial piping systems to suspend and secure pipes horizontally. It consists of a U-shaped bracket (the clevis) with a threaded rod or bolt for vertical support, allowing the pipe to hang from ceilings, beams, or other structural elements.
Clevis hangers are designed to provide rigid support while accommodating thermal expansion and contraction of the pipe. They are widely used in HVAC, water supply, fire protection systems, and industrial pipelines.
| Model No | Pipe NB (Inch) | Pipe NB (MM) | Clamp ID (MM) | Breaking Load (KG) |
|---|---|---|---|---|
| MCH 10 x 025 | 1.0" | 25 | 34 | 210 |
| MCH 10 x 032 | 1 1/4" | 32 | 42 | 225 |
| MCH 10 x 040 | 1 1/2" | 40 | 49 | 245 |
| MCH 10 x 050 | 2.0" | 50 | 61 | 265 |
| MCH 10 x 065 | 2 1/2" | 65 | 77 | 272 |
| MCH 10 x 080 | 3.0" | 80 | 91 | 285 |
| MCH 10 x 100 | 4.0" | 100 | 116 | 295 |
| MCH 12 x 150 | 6.0" | 150 | 168 | 305 |
| MCH 12 x 200 | 8.0" | 200 | 221 | 335 |
